Window cleaning robots work by generating a negative pressure vacuum seal of 2,500 to 3,000 Pascals (Pa), allowing specialized drive tracks or rotating microfiber pads to firmly grip and navigate vertical glass surfaces. Whether you achieve a flawless finish depends entirely on managing pad moisture and understanding the physical limits of the robot's edge detection algorithms. As engineers designing thesewindow cleaning robots, we routinely see consumers expect full autonomy; however, achieving a completely streak-free result requires active operator intervention and strict adherence to dry-dusting protocols.
Quick-Reference Summary
Suction mechanics: High-torque brushless motors create a vacuum seal capable of supporting up to 4 times the robot's weight.
Safety fallbacks: A mandatory UPS backup battery provides 20 to 30 minutes of emergency suction during outages.
Edge navigation: Air pressure loss sensors instantly detect suction drops on frameless glass, reversing the machine within 0.5 seconds.
Moisture control: Ultrasonic atomization sprays micron-level water droplets to dissolve dirt without leaving drive-track residue.
Operator requirements: Multi-pane windows require manual unit relocation; these are not "set-and-forget" appliances.
What to Know Before You Decide
Many buyers wonder if window cleaning robots are worth it, usually stemming from fears about vertical safety and actual corner-cleaning performance. Modern units employ a Vertical Automation Framework that drastically reduces drop risks, but you must select the right chassis architecture for your specific glass type.
Feature
Square Chassis Robots

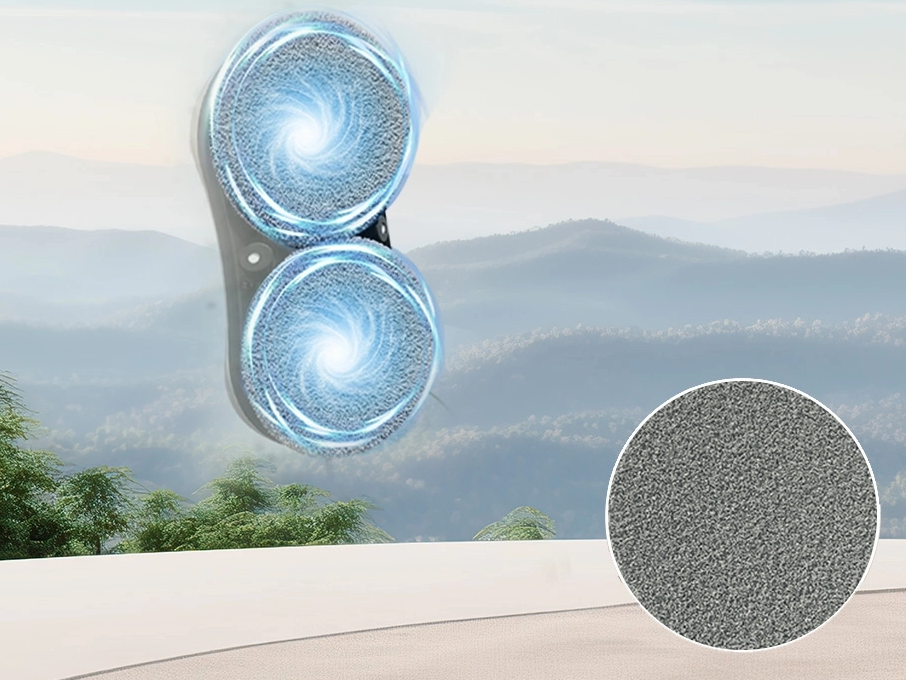

Round Dual-Spin Robots
Direct Impact
Corner Coverage
Reaches 98% of 90-degree corners
Leaves a 1-to-2-inch uncleaned border
Square models excel on architectural glass.
Locomotion
Linear caterpillar drive tracks
Alternating rotational suction pads
Tracks can leave residue on heavily soiled glass.
Safety Sensors
Mechanical bump & pressure sensors
Vacuum seal threshold monitors
Both prevent falls; square handles frameless better.
Hardware Weight
2.0kg – 2.8kg
1.0kg – 1.5kg
Heavier square models require higher Pa ratings.
Suction Power
2,800 Pa – 3,500 Pa
2,000 Pa – 2,800 Pa
High suction prevents slipping on double-glazed glass.
Cleaning Speed
2.5 minutes per square meter
4 minutes per square meter
Square models process large panoramic panes faster.
How to Operate Your Window Robot for a Streak-Free Finish
1. Execute a Dry-Dusting Pass
Always run your robot with completely dry microfiber pads first. This initial pass removes loose airborne dust and pollen. If you introduce water immediately, the dirt turns into mud, which instantly clogs the pad fibers. Our R&D engineering team notes that skipping this dry pass is the primary reason users experience circular smearing during their very first run.
2. Swap to Clean Microfiber Pads
After the dry pass, remove the soiled pads and attach a fresh, sterile set. Using a single set of pads for an entire cleaning session guarantees cross-contamination. Field experience consistently shows that buyers who invest in 10 to 12 extra pads achieve significantly clearer glass than those relying solely on the two sets included in the box.
3. Calibrate the Ultrasonic Spray
Activate the robot's micron-level atomization feature via your app control. This system sprays water droplets as small as 15 micrometers. Do not manually spray standard glass cleaner directly onto the window. Excessive liquid compromises the negative pressure vacuum seal, causing the robot's drive tracks to slip and leave distinct, dirty track marks straight down the glass.
PRO TIP: If cleaning exterior windows on a windy day, disable the auto-spray function. Wind easily disperses the 15-micrometer mist before it ever hits the glass; manually apply exactly two sprays directly to the robot's pad instead.
4. Secure the Safety Tether
Anchor the 4.5mm safety rope to a heavy indoor object before powering the device. The carabiner must securely hold at least 150kg of force. Even with internal UPS backup batteries providing 20 minutes of emergency power, a sudden loss of suction from an undetected glass defect requires a physical failsafe to prevent property damage.
5. Position for Path Planning
Place the robot at the bottom corner of the glass pane and power it on. The device will climb to the top edge before initiating its zigzag navigation path. Ensure the unit is at least 10 centimeters away from the window frame during startup to allow the bump sensors adequate space to calibrate the boundaries.
6. Monitor and Relocate
Wait for the unit to sound its completion alarm and return to its starting position, then manually move the robot to the next pane. In practice, what most buyers discover after their first season is that window robots require active babysitting for segmented French doors, making them best suited for large, uninterrupted glass expanses.
WARNING: Never pull the robot directly off the glass without first gripping the handle and pressing the power button to release the 3,000 Pa suction lock. Forcing it physically can snap the internal drive motor gears.
Common Mistakes
Over-saturating the cleaning pads. * Cause: Spraying heavy liquid glass cleaner manually onto the glass.
Consequence: The vacuum seal weakens, causing drive-track residue and vertical slippage.
Correction: Rely solely on the robot's built-in ultrasonic spray system or apply a maximum of two sprays to the dry pad.
Deploying on heavily soiled exterior glass. * Cause: Treating the robot as a deep-cleaning restoration tool rather than a maintenance tool.
Consequence: Thick mud forms instantly, leaving heavy smears that require manual correction.
Correction: Hose down and squeegee caked exterior mud manually; use the robot strictly for bi-weekly maintenance.
Ignoring frameless glass limitations. * Cause: Using older, budget models on glass railings or shower doors.
Consequence: The robot drives over the edge and falls.
Correction: Verify your specific unit features air pressure loss sensors designed specifically for frameless edge detection.
Cleaning in direct, intense sunlight. * Cause: Operating the machine during peak afternoon UV hours.
Consequence: The thin ultrasonic mist evaporates in milliseconds before the pad can wipe it, causing dry friction.
Correction: Schedule your automated cleaning routines for early mornings or overcast days.
Troubleshooting
Problem
Likely Cause
Solution
Robot slips downward continuously
Pads are too wet, or the glass is heavily soiled with grease.
Replace with dry pads and run a complete dry-dusting cycle first.
Leaves visible track marks
Dirty linear drive treads are depositing grime onto the glass.
Wipe the rubber caterpillar tracks with a damp cloth and dry thoroughly.
Halts mid-window and alarms
Power cord tension or disconnection is triggering safety protocols.
Check the DC extension cable connections and ensure adequate slack.
Refuses to clean edges
Outdated navigation path firmware or dirty edge bump sensors.
Wipe the corner sensors clean and update the app control firmware.
Flashing red status light
The internal UPS backup battery is not fully charged.
Charge the robot connected to wall power for exactly 2 hours before operation.
FAQ
Are window cleaning robots worth it for regular-sized windows?
If your home features small, multi-pane windows, a robot window cleaner will likely frustrate you due to the constant manual relocation required. They provide the highest return on investment for high-rise apartments, large panoramic architectural glass, and difficult-to-reach skylights where manual cleaning poses a genuine physical risk.
What happens to the robot if the power goes out?
Window cleaning robots will not immediately fall during a power failure. Every certified unit contains an internal UPS lithium battery that maintains the suction motor for 20 to 30 minutes while sounding a high-decibel alarm. This provides ample time to safely retrieve the machine using the physical tether.
Will the robot leave dirty borders in the corners of my windows?
Round, dual-spin robots physically cannot clean sharp 90-degree corners, always leaving a visible 1.5-inch uncleaned radial border. Square window cleaning robots utilize edge detection algorithms and 90-degree corner pads to achieve approximately 98% coverage, leaving only a microscopic gap at the absolute corner point.
How do automatic window cleaners stick to frameless glass?
Older models rely on physical bump sensors hitting a raised window frame. Modern robots designed for frameless glass use sophisticated air pressure loss sensors underneath the chassis. The exact microsecond these sensors detect a drop in negative pressure near an edge, they instantly reverse the brushless motor.
Can I use my regular glass cleaning spray with the robot?
Avoid using heavy, foaming glass cleaners. Standard household sprays contain specific detergents that cause the microfiber pads to foam, leading directly to streaking and drive-track slippage. Stick to distilled water or the specialized, low-viscosity fluid specified by the manufacturer for the ultrasonic tank.
About Lincinco
Engineering vertical robotics that reliably maintain a high-vacuum seal requires precise fluid dynamics testing and world-class manufacturing tolerances.Lincinco is a premier smart home cleaning robot manufacturer based in China, specializing in customized OEM and ODM solutions for global enterprise brands. Our expansive manufacturing facility enforces strict quality control, utilizing advanced automated telemetry to produce industrial-grade automated window cleaning systems andsmart robot vacuums. From complex edge-detection algorithms to high-torque floor care units, our R&D hub successfully solves the most demanding consumer electronics challenges for our international partners.
Conclusion
When explaining how do window cleaning robots work, the mechanical reality always comes down to precise negative pressure vacuum seals, high-torque brushless motors, and intelligent path planning. Achieving a flawless, streak-free finish relies entirely on your willingness to perform dry-dusting passes and manage pad moisture accurately. For enterprises looking to expand their consumer electronics portfolio with highly reliable vertical cleaning technology,contact Lincinco today to discuss our customized manufacturing capabilities.
