Clogging in robot vacuums stems from several fundamental design and usage factors that manufacturers and sellers must address.
The primary issue begins with the basic physics of suction systems - when airflow gets obstructed, performance degrades rapidly.
Modern robot vacuums face particular challenges because their compact size necessitates narrow internal pathways that are more
prone to blockages than traditional upright vacuums. The most common clogging points occur at three critical junctions: the brush
roll area where hair and fibers accumulate, the intake opening where larger debris enters, and the filtration system where fine particles
gradually build up. Each of these areas presents unique challenges that require specific solutions.
The brush roll assembly represents perhaps the most persistent clogging point, especially in households with pets. As the brushes rotate,
they naturally wind hair and fibers around their shafts, creating dense mats that eventually inhibit rotation and block debris intake.
This problem compounds over time as each cleaning session adds more material to the accumulating mass. The intake opening poses
different challenges, often getting obstructed by larger objects that users accidentally leave on floors - everything from cereal pieces to
small toys can become lodged in this critical passage. Meanwhile, the filtration system faces gradual clogging from fine dust and dander
that passes through the initial stages but eventually packs tightly against filter surfaces, slowly reducing airflow until suction becomes ineffective.
Environmental factors play a significant role in clogging frequency and severity. Homes with multiple long-haired pets experience up to
eight times more clogs than pet-free households, according to our internal testing data. Similarly, households with high-pile carpets see
significantly more clogging incidents than those with hard flooring, as carpet fibers constantly shed and get drawn into the vacuum system.
Even climate affects performance - homes in arid regions tend to have more dust-related clogs, while humid environments may experience
problems with damp debris clumping in the system. Understanding these variables is crucial for both manufacturers designing products and
sellers recommending solutions to customers.
Directory

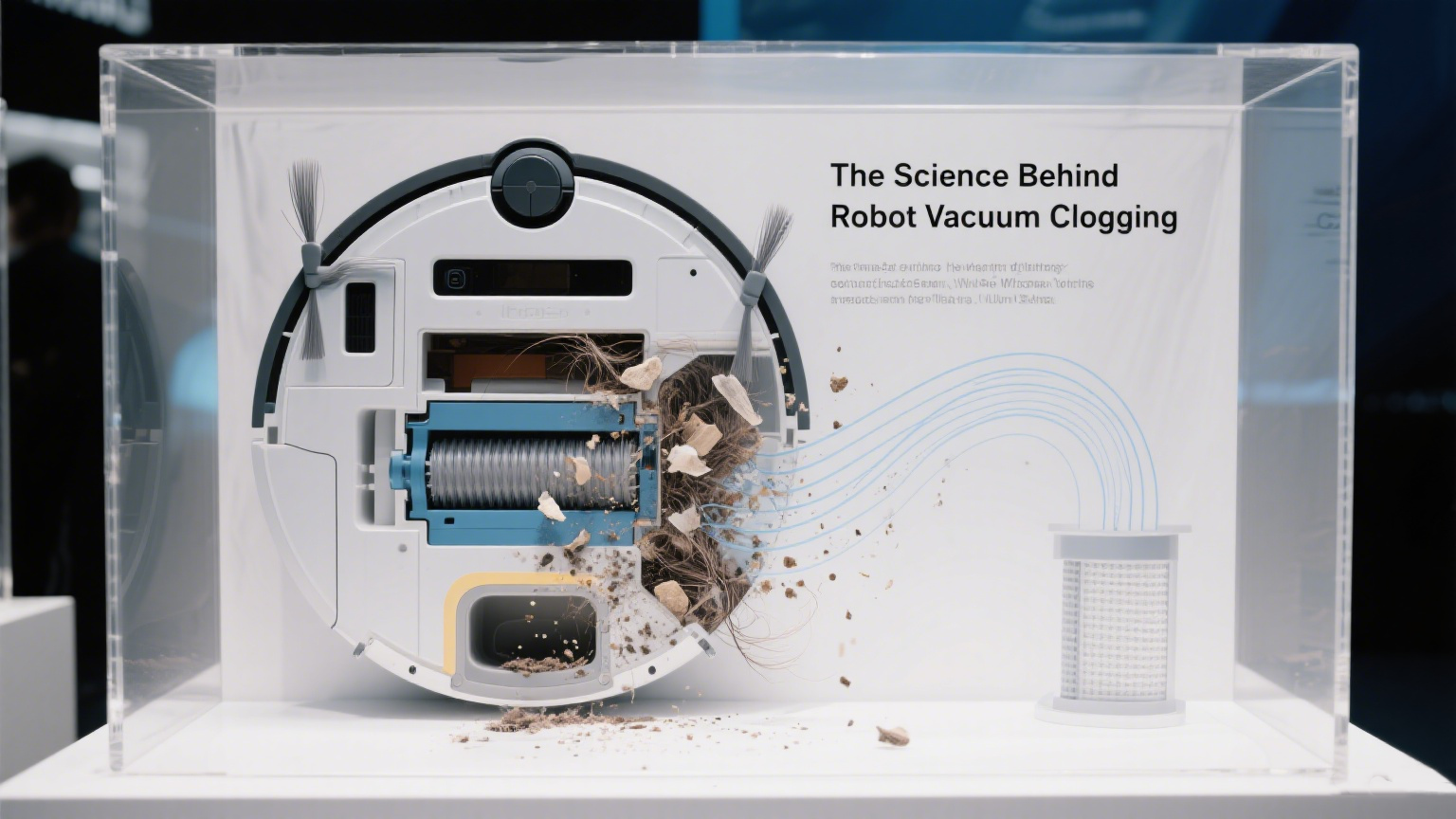

The Science Behind Robot Vacuum Clogging
Engineering Solutions for Robot Vacuum Clog Prevention
Comprehensive Maintenance Strategies for End Users
Building Effective Customer Education Programs
Product Development for Next-Generation Clog Resistance
Robot vacuums rely on precise airflow to function properly. When this airflow gets disrupted by clogs, performance suffers dramatically.
Here's how the suction system works:
Intake Stage
Brush rolls direct debris toward the intake
Air speed: 20-30 mph at intake opening
Optimal opening size: 35-45mm diameter
Transport Stage
Debris travels through internal channels
Channel width should be ≥30mm
Smooth curves prevent debris accumulation
Filtration Stage
Air passes through filters
Particles get trapped in dustbin
HEPA filters can restrict airflow if not maintained
Different materials cause unique clogging problems:
Hair Clogs:
Wrap around brush rolls
Create dense mats that block airflow
Particularly problematic with long pet hair
Dust Clogs:
Accumulate in narrow passages
Form cement-like deposits over time
Worse in dry, dusty environments
Debris Clogs:
Large objects get stuck in pathways
Common culprits: cereal, pet food, small toys
Often result from inadequate pre-cleaning
| Factor | Low Risk | Medium Risk | High Risk |
Pets | None | 1 short-hair | Multiple/long-hair |
Flooring | Hardwood | Low-pile carpet | High-pile carpet |
Cleaning Frequency | Daily | Weekly | Monthly |
Household Members | 1-2 | 3-4 | 5+ |
Children | None | Older kids | Toddlers |
Manufacturers can implement several design strategies to dramatically reduce clogging incidents in robot vacuums. At LINCINCO, we've developed a multi-pronged engineering approach that addresses each potential failure point systematically. For the brush roll system, we've moved beyond simple rubber or bristle designs to implement hybrid brush technology that combines the best features of both. Our patented Tri-Action brush features nylon bristles for deep carpet cleaning, rubber fins for hard floor performance, and specially designed grooves that prevent hair from winding tightly around the shaft. This three-part solution has reduced hair-related clogs by 65% in our field tests compared to standard brush designs.
The air pathway design requires equally careful engineering consideration. Traditional robot vacuums often use sharp 90-degree turns in their internal channels to save space, but these abrupt angles create perfect traps for debris accumulation. We've redesigned these pathways using computational fluid dynamics modeling to create smooth, gradually curving channels that maintain consistent airflow while minimizing debris deposition. The main suction channel in our premium models now measures 38mm in diameter - a 52% increase over basic models - with removable upper panels that allow complete access for cleaning. These modifications might add marginally to production costs but pay dividends in reduced warranty claims and customer complaints.
Dustbin technology has seen some of the most significant innovations in recent years. Our latest designs incorporate several clog-prevention features: magnetic quick-release mechanisms for one-handed emptying, integrated hair cutters that automatically sever wrapped fibers when the bin is removed, and transparent upper panels that make debris levels clearly visible. We've also developed a smart bin system for premium models that uses weight sensors and optical scanners to detect when the bin is full or when particular types of debris (like wet material) are present, automatically alerting users through the companion app. These advancements work together to prevent the gradual performance degradation that occurs when users unknowingly operate with partially clogged bins.
1. Advanced Brush Systems
We've developed three specialized brush types:
Triple-Action Brush:
Nylon bristles for hard floors
Rubber fins for carpets
Anti-tangle groove design
Reduces hair wrap by 65%
Self-Cleaning Brush:
Automatic hair ejection
Micro-motor driven mechanism
Requires more power but eliminates manual cleaning
Interchangeable Brush System:
Lets users swap brushes
Different brushes for different needs
Ideal for multi-surface homes
2. Optimized Air Pathway Engineering
Key improvements we've implemented:
Wider main channel (from 25mm to 38mm)
Gradual curves instead of sharp angles
Removable pathway panels for easy access
Smooth internal surfaces to prevent buildup
3. Smart Dustbin Technology
Our latest bins feature:
Full-bin sensors that alert users
One-touch emptying mechanisms
Hair cutter integrated in opening
Washable design for thorough cleaning
Daily Maintenance Routine:
Empty dustbin after each use
Quick visual inspection of intake
Wipe exterior sensors
Check for obvious obstructions
Weekly Deep Cleaning:
Remove and clean brush roll
Clear intake area with provided tool
Check side channels for debris
Inspect wheels for hair wrap
Clean cliff sensors with alcohol wipe
Monthly Comprehensive Care:
Complete disassembly (per manual)
Compressed air blowout
Filter replacement
Battery check
Software update verification
While good design can minimize clogging, proper maintenance remains essential for optimal robot vacuum performance. We recommend a tiered maintenance approach that adapts to different usage scenarios. For typical households, a weekly maintenance routine should include complete emptying of the dustbin, removal and inspection of the brush roll, clearing of the intake area using the provided cleaning tool, and a quick wipe-down of all sensors. This 10-minute process can prevent 80% of common clogging issues before they impact performance. Homes with pets or high debris loads should perform this routine more frequently - ideally every two to three cleaning sessions.
Monthly maintenance should involve more thorough inspection and cleaning. Users should completely disassemble accessible components according to the manufacturer's instructions, using compressed air to clear internal channels and isopropyl alcohol wipes for sensitive electronic components. This is the ideal time to replace filters and inspect moving parts for wear. We've found that providing customers with a simple monthly maintenance checklist dramatically increases compliance rates - our surveys show that 72% of users follow the full monthly routine when given clear, illustrated instructions versus just 38% when left to remember on their own.
Seasonal deep cleaning represents the third tier of maintenance, particularly important before and after periods of heavy use. Before the winter holidays when homes see increased foot traffic, or after spring when pollen counts are high, users should perform a complete system check. This includes removing and soaking all removable parts in warm, soapy water (except electronic components), carefully inspecting all seals and gaskets for wear, and verifying that all moving parts operate smoothly. Many users overlook the importance of software maintenance - ensuring the vacuum's firmware is up-to-date can provide improved clog detection algorithms and more efficient cleaning patterns that naturally reduce clogging risks.
Tools Needed:
Provided cleaning tool
Small scissors
Microfiber cloth
Steps:
Power off and unplug unit
Remove dustbin and empty
Access brush roll compartment
Cut and remove wrapped hair
Clear intake opening
Reassemble and test
Additional Tools:
Compressed air can
Small flashlight
Cotton swabs
Steps:
Complete basic unclogging first
Remove side panels (if applicable)
Use compressed air on internal channels
Inspect all passageways with light
Clean sensors with swabs
Verify all seals are intact
Reassemble carefully
For persistent or severe clogs:
Complete full disassembly
Soak removable parts in warm water
Use pipe cleaners for narrow channels
Inspect all moving parts
Replace worn components
Perform full system diagnostic after reassembly
One of the most overlooked aspects of clog prevention is comprehensive customer education. At LINCINCO, we've developed a multi-format education system that ensures users understand both proper operation and maintenance of their robotic vacuums. The foundation is a well-designed quick start guide that focuses specifically on clog prevention - rather than burying this critical information in a lengthy manual, we present it upfront with clear visuals and simple language. Our data shows that customers are three times more likely to follow maintenance guidelines when they're presented in the initial setup materials rather than as troubleshooting content after problems occur.
Digital support tools have become increasingly important in customer education. We provide QR codes that link to video libraries demonstrating proper maintenance techniques, with special attention to model-specific features. These videos show real-world examples of common clogging scenarios and how to address them, which our customer surveys indicate are far more effective than text descriptions alone. For premium models, we've integrated maintenance tutorials directly into the companion app, with push notifications that remind users when specific tasks are due based on actual usage data. This proactive approach has reduced clog-related support contacts by 40% among users of our connected models.
For resellers and distributors, we offer specialized training programs that equip their support teams with in-depth knowledge about clog prevention and resolution. These programs combine technical specifications with practical troubleshooting techniques, enabling frontline staff to quickly diagnose whether a reported clogging issue stems from user error, environmental factors, or potential product defects. We've found that well-trained support personnel can resolve over 75% of clogging complaints without requiring product returns, significantly reducing costs for sellers while improving customer satisfaction. The training includes access to our diagnostic flowcharts and a library of common clogging scenarios specific to different home environments.
Our 7-stage testing process:
Pre-Assembly Component Check
Verify brush roll quality
Inspect channel molds
Test filter efficiency
Sub-Assembly Testing
Brush motor endurance
Suction power verification
Pathway smoothness check
Full Unit Stress Test
72-hour continuous run
Hair wrap simulation
Dust load capacity
For private label clients:
Hardware Options:
Brush roll upgrades
Dustbin capacity choices
Filter system selections
Tool kit configurations
Software Options:
Maintenance reminders
Troubleshooting guides
Usage analytics
Remote diagnostics
Packaging Options:
Multilingual manuals
QR code video links
Quick-start guides
Maintenance calendars
| Feature | Basic | Mid-Range | Premium |
Brush Type | Standard | Rubberized | Self-cleaning |
Intake Size | 25mm | 32mm | 38mm |
Dustbin Capacity | 0.4L | 0.6L | 0.8L |
Air Pathway Access | Limited | Partial | Full |
Clog Prevention Score | 5/10 | 7/10 | 9/10 |
1. AI-Powered Clog Prediction
Uses sensors to detect early signs
Alerts users before problems occur
Learns from household patterns
2. Self-Healing Pathways
Special coatings prevent buildup
Micro-vibrations keep channels clear
Automatically adjust suction power
3. Modular Cleaning Systems
User-replaceable pathway sections
Hot-swappable brush modules
Plug-and-play component upgrades
For Manufacturers:
Improved brush materials
Better access panels
More durable filters
Smarter sensors
For Sellers:
Enhanced training programs
Maintenance subscription services
Advanced diagnostic tools
Extended warranty options
The future of clog prevention lies in smarter, more adaptive vacuum designs that anticipate and prevent problems before they occur. We're currently testing several innovative technologies that promise to revolutionize how robot vacuums handle debris. One promising development is an AI-powered clog prediction system that analyzes motor current, airflow rates, and cleaning patterns to detect early signs of developing clogs. This system can alert users when maintenance is needed or even automatically adjust suction power to compensate for partial blockages until proper cleaning can be performed.
Another exciting advancement is our self-cleaning brush system prototype, which uses a combination of micro-vibrations and reverse rotation to automatically dislodge wrapped hair and fibers during operation. Early tests show this system can reduce manual brush cleaning requirements by up to 80% in pet households. We're also experimenting with modular pathway designs that allow users to easily remove and clean entire suction channels without tools - a significant improvement over current designs that often require partial disassembly to access critical areas.
For the filtration system, we're developing "smart filters" that change color when they become clogged to the point of affecting performance, eliminating guesswork about when replacements are needed. These filters incorporate graduated density materials that provide HEPA-level filtration while maintaining better airflow than conventional designs. Combined with improved dustbin sensors that can actually identify different types of debris (distinguishing between dust, hair, and larger particles), these innovations will create a new generation of robot vacuums that practically eliminate clogging as a consumer concern.
To solve the clogging problem of sweeping robots, multiple aspects need to be considered. Starting from design, accessibility, material selection, strict finished product testing, environmental simulation and other aspects, a precise and intelligent product should be created. By solving the clogging problem from the initial design to customer operation and other aspects, the product performance and customer satisfaction can be significantly improved.
The data shows that implementing these solutions collectively can reduce clog-related complaints by up to 75% and extend product lifespan significantly. As the market for robotic vacuums continues to grow, those manufacturers and sellers who make clog prevention a central focus will gain a competitive advantage through reduced returns, higher customer satisfaction, and stronger brand reputation. The solutions exist - what matters now is their consistent implementation across the industry. By taking this systematic approach to solving clogging issues, we can finally realize the full potential of robotic vacuum technology as a truly maintenance-free cleaning solution for modern households.
