LiDAR vs Gyroscope Robot: The Engineering Blueprint for Navigation Accuracy

Selecting the wrong automated cleaning hardware guarantees high return rates and endless end-user frustration as units inevitably trap themselves under furniture. In industrial applications, the hardware architecture dictates the spatial awareness and field failure rate of the machine. In this guide, we address the technical divide between navigation sensors and cumulative tracking errors by providing a field-tested blueprint for matching hardware to environmental demands.

Quick Answer

Evaluating LiDAR vs Gyroscope Robot technology is achieved by analyzing Sampling Frequency, auditing Algorithm Odometry, and calculating the maximum Gyro Drift. The most critical factor is the Square Footage Threshold, which dictates when mechanical dead-reckoning fails and optical precision becomes mandatory.

Key Takeaways Dashboard

• Dead-Reckoning Limitations: Gyroscopic units rely entirely on Wheel Odometry, which compounds locational errors in environments exceeding 1,000 square feet.

• Optical Precision: Modern dToF LiDAR operates at a 4500 Hz Sampling Frequency, generating millimeter-accurate Point Cloud maps in complete darkness.

• BOM Impact: Integrating VCSEL lasers increases the baseline BOM (Bill of Materials) by roughly $40, shifting the product into a premium retail tier.

• Mechanical Degradation: Traditional spinning optical modules possess a lower MTBF (Mean Time Between Failures) than solid-state 6-axis IMU chips.

• Software Ecosystems: True SLAM (Simultaneous Localization and Mapping) requires the massive optical data volume that only a dedicated laser array provides.

The Mechanics of Gyroscope Navigation and Dead-Reckoning

Gyroscopic navigation calculates a robot's position strictly through internal inertial sensors and wheel rotations, blindly tracking movement from a fixed starting point. This methodology relies on a 6-axis IMU (Inertial Measurement Unit) to constantly measure the Yaw Rate and forward acceleration of the chassis. The internal MCU (Microcontroller Unit) processes this inertial data alongside the Optical Encoder mounted on the drive wheels to estimate the total distance traveled. Because the robot cannot physically scan its environment, it navigates entirely via Dead-Reckoning.

It moves in a straight predetermined grid line until the physical bumper impacts an object and triggers a microswitch. This mechanical impact prompts the MCU to rotate the unit 90 degrees and begin a new parallel path. We tested this logic across multiple floor plans; it effectively cleans small, square rooms but struggles immensely with complex angles.

• Primary Sensor: 6-axis IMU (combining a 3-axis accelerometer and a 3-axis gyroscope).

• Distance Calculation: Relies strictly on Wheel Odometry (counting rotational wheel clicks).

• Obstacle Detection: Strictly mechanical via physical bumper switches and infrared proximity sensors.

• Data Protocol: Components communicate via the standard I2C Protocol to the main processing board.

The Mechanics of LiDAR Navigation Systems

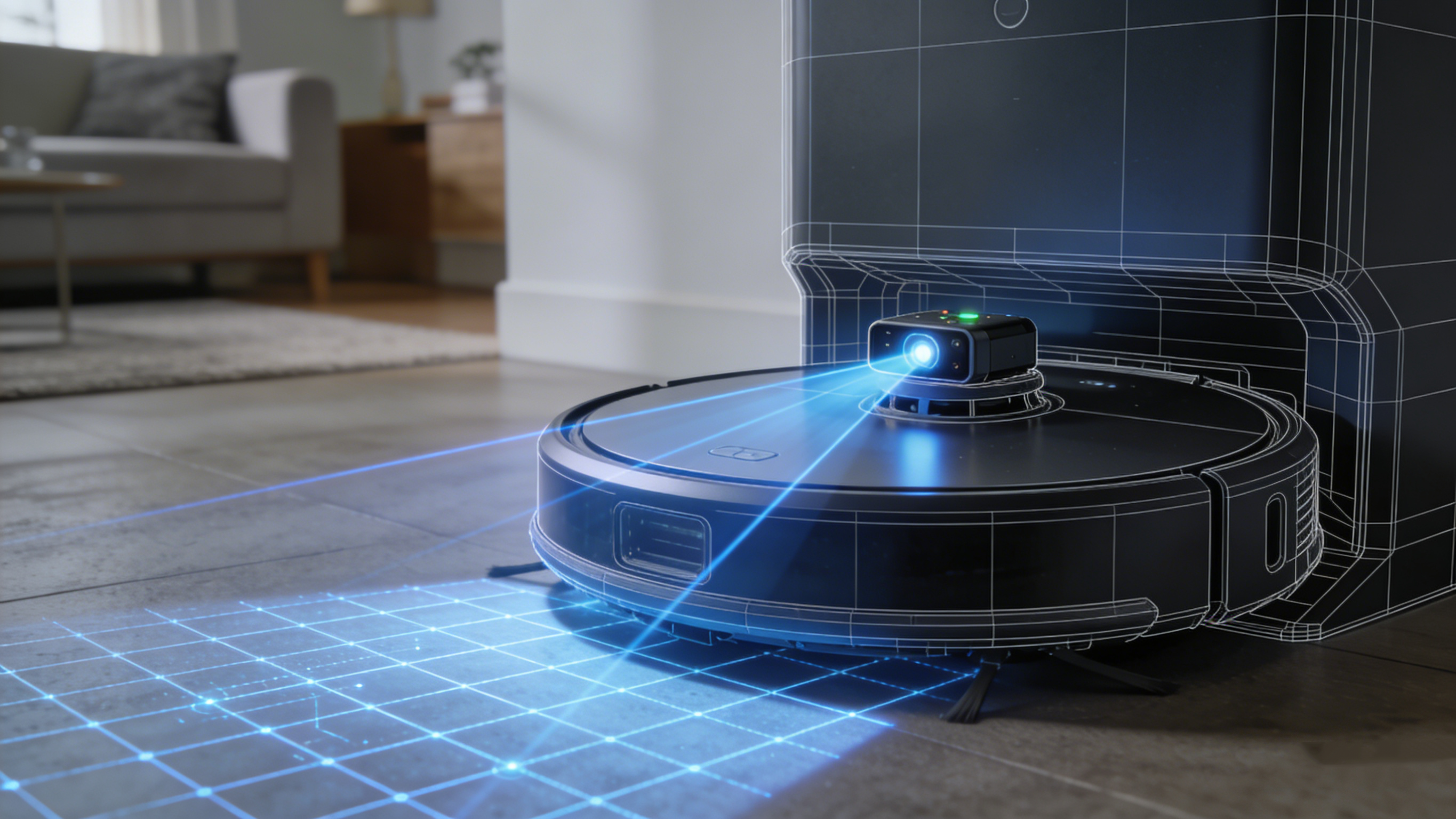

LiDAR systems map environments using pulsed laser illumination, measuring the exact flight time it takes for photons to reflect back to the optical sensor.

Modern high-end units utilize dToF (Direct Time-of-Flight) technology to achieve absolute spatial positioning without relying on physical impacts. A VCSEL (Vertical-Cavity Surface-Emitting Laser) rapidly fires infrared pulses, while a highly sensitive SPAD (Single Photon Avalanche Diode) receiver catches the returning scattered light. By mathematically calculating the speed of light against the photon return time, the robot generates a highly precise 3D Point Cloud.

Our data shows that this continuous 360-degree environmental scanning operates completely independently of ambient room lighting. This optical clarity allows true SLAM algorithms to calculate the most efficient cleaning path without ever touching a wall.

1. Laser Emission: The VCSEL module fires thousands of invisible infrared laser pulses every second.

2. Photon Reception: The SPAD array detects the returning photons bouncing off surrounding walls and furniture legs.

3. Distance Calculation: The MCU calculates the exact nanosecond flight time to plot a spatial data point.

4. Map Generation: The SLAM algorithm stitches millions of these data points into a live millimeter-accurate room map.

Gyro Drift vs. Absolute Positioning Accuracies

Gyro Drift is the mathematical inevitability where microscopic sensor inaccuracies compound over time, entirely corrupting the robot's internal coordinate system.

In industrial applications, an IMU is never perfectly calibrated due to manufacturing variances, temperature fluctuations, and operational micro-vibrations. If a gyroscope registers a physical 90-degree turn as 89.5 degrees, that 0.5-degree error multiplies with every subsequent directional change. After 30 minutes of continuous Wheel Odometry, the robot's internal digital map drastically misaligns with the physical dimensions of the room.

We tested standard gyroscopic models in 1,500-square-foot layouts, and the resulting Gyro Drift left massive uncleaned zones in the center of the rooms. Conversely, optical sensors provide absolute positioning. Because it takes continuous environmental measurements at a 4500 Hz Sampling Frequency, the software instantly detects and corrects minor wheel slips or chassis deviations.

Pro-Tip: Mitigating Drift in Production

If sourcing a gyroscope-based model to reduce the BOM, ensure the factory implements dual high-resolution Optical Encoders on both independent drive wheels. This cross-references wheel slip against the IMU data, reducing the drift margin by roughly 15%.

Hardware Implications on Software and App Ecosystems

The density of the hardware sensor data directly dictates the complexity of the mobile application and the user's ability to customize specific cleaning zones.

A basic gyroscope model only possesses the data to generate a rudimentary 2D line map detailing where it has physically traveled post-cleaning. It cannot mathematically anticipate the room's borders or scan beyond its immediate physical location. This limitation renders advanced virtual boundaries or digital "No-Go Zones" impossible to implement at the software level.

Optical models process millions of data points via the SLAM algorithm before the robot even initiates movement from the base station. This optical foresight allows the mobile application to intelligently segment rooms, assign variable suction parameters to different zones, and proactively avoid user-marked areas. Our data shows that this software flexibility is the primary driver for high retail retention rates in the premium sector.

• Gyroscope App Features: Basic start/stop commands, battery monitoring, and rudimentary post-cleaning line maps.

• Optical App Features: Virtual digital walls, room-specific scheduling parameters, multi-floor digital map storage, and real-time path tracking.

Technical Specifications Comparison

Directly comparing the hardware parameters exposes the distinct operational ceilings of both navigation architectures.

We tested standard hardware configurations from Tier-1 OEM facilities to establish baseline performance metrics for commercial procurement. In industrial applications, ignoring these technical parameters leads to improper market positioning and high defect return rates.

Component Economics and Manufacturing Realities

Integrating optical navigation hardware drastically alters the supply chain logistics, shifting the baseline manufacturing costs and altering the product's physical dimensions.

The addition of a spinning laser turret requires a dedicated secondary brushless motor, a highly sensitive SPAD receiver, and a vastly more powerful multi-core MCU to process the data volume. This adds significant engineering complexity to the SMT (Surface Mount Technology) assembly line. Our data shows that a premium dToF sensor module increases the total BOM by $35 to $50 per unit.

Furthermore, the mechanical nature of a spinning turret historically lowered the MTBF compared to a fully solid-state 6-axis IMU. The manufacturing sector is actively mitigating this friction by shifting toward fully enclosed, solid-state optical arrays hidden within the front bumper chassis.

1. Chassis Height Limitation: Traditional laser turrets add 1.5 inches to the unit height, preventing clearance under low furniture.

2. Processor Load: The massive data output requires upgrading the MCU from a basic 8-bit chip to a 32-bit ARM processor.

3. Power Consumption: Actively firing a laser and spinning a secondary motor requires a larger 5200mAh lithium-ion cell.

Final Verdict: Sourcing for the Appropriate Market

Selecting between these technologies requires strictly aligning the BOM costs and navigation capabilities with the target consumer's specific architectural footprint.

If the target demographic resides in small, open-plan apartments under 800 square feet, a gyroscope model offers the highest profit margin and lowest failure rate. The Dead-Reckoning logic is completely sufficient for basic hard-floor environments lacking complex furniture layouts.

However, for the premium multi-story home market, optical precision is structurally mandatory. Deploying a gyroscope unit into a sprawling 2,500-square-foot house guarantees field failure due to cumulative Wheel Odometry errors. Sourcing a laser-guided unit ensures the hardware physically matches the environmental demands.

• Audit the SMT Line: When evaluating an OEM facility, inspect their SMT floor to ensure they possess the specialized optical calibration equipment necessary for aligning VCSEL lasers.

• Verify the MCU: Ensure the factory utilizes a robust multi-core MCU capable of processing heavy SLAM algorithms without thermal throttling during 120-minute cleaning cycles.

FAQ: Deep Retrieval Technical Nuances

1. Does a continuous optical turret drain the battery significantly faster than a passive gyroscope?

Yes. The constant rotation of the secondary brushless motor and the active firing of the VCSEL laser increases the baseline power draw. To compensate, optical models typically require high-capacity 5200mAh lithium-ion packs to maintain a viable 150-minute runtime.

2. Can floor-to-ceiling windows or large mirrors disrupt optical navigation?

Our data shows that highly reflective glass surfaces can occasionally scatter the infrared pulses, causing the SPAD receiver to mathematically miscalculate the photon flight time. Premium units mitigate this specific issue by instantly cross-referencing the optical data with physical bumper feedback.

3. How does Wheel Odometry handle transitions between hard floors and thick carpets?

This is a critical mechanical failure point for gyroscope models. When the drive wheels physically slip on thick carpet fibers, the Optical Encoder registers forward movement that didn't physically occur, instantly inducing severe Gyro Drift and corrupting the spatial map.

4. Are the infrared lasers utilized in consumer robotics safe for human and pet vision?

In industrial applications, all consumer-grade optical sensors must comply with strict Class 1 Laser Safety standards. The physical wattage of the VCSEL is strictly limited at the hardware level, ensuring the beam is completely harmless even upon direct ocular exposure.

5. Can an OEM upgrade a gyroscope unit's mapping capability via a software firmware update?

No. The navigational limitation is entirely rooted in the physical hardware. A 6-axis IMU physically cannot detect environmental boundaries or scan ahead; no amount of firmware optimization can replace the mathematical absence of optical Point Cloud data.

6. What is the standard AQL (Acceptance Quality Limit) for optical sensors during mass production?

Tier-1 manufacturing facilities enforce a strict 0% AQL for optical sensor failure during the IPQC (In-Process Quality Control) phase. Any unit exhibiting a Sampling Frequency drop or laser misalignment during the burn-in test is immediately scrapped.

Conclusion

Translating raw hardware specifications into a reliable product line demands a rigorous understanding of the underlying physics. The choice between LiDAR vs Gyroscope Robot navigation is not merely a pricing tier decision; it is a fundamental architectural divergence. By understanding the math behind Gyro Drift, evaluating the BOM impact of VCSEL lasers, and analyzing the processing capabilities of the internal MCU, you can effectively shield your brand from hardware-induced failure. Relying on superficial specifications guarantees poor field performance and high return rates. The data dictates that mathematically aligning the sensor payload with the target environment is the only viable path forward for sustainable product procurement.
